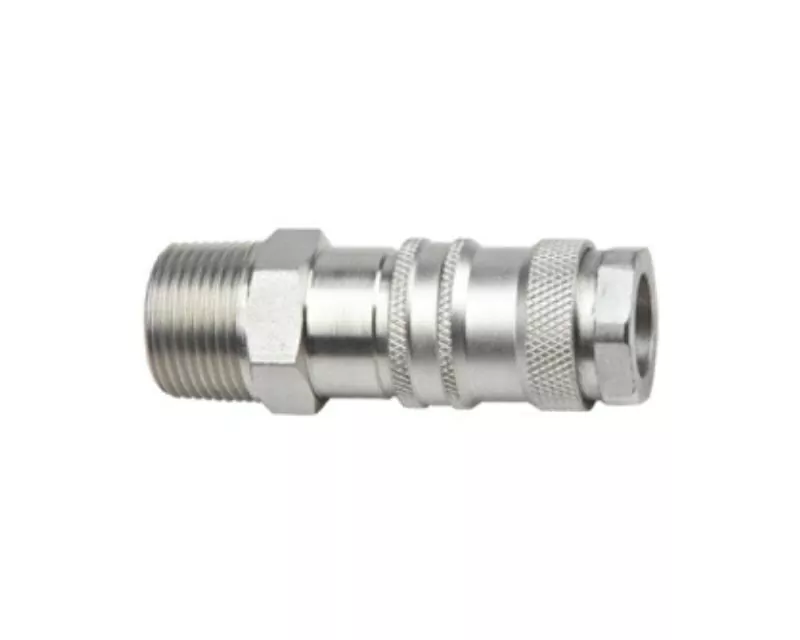

Features: Valid diameter 11mm, ISO 6150B standard
Advantages: large flow valve, single hand operation.
Application: pneumatic tools, automotive, machinery equipment.
Interchangeability: CEJN 550 Series
Working pressure: 1.6Mpa
Working temperature: -20℃+120℃
| PART NO. |
LS |
￠D |
HEX1 |
A |
T |
d |
| LSQ-550-04SM |
79.9 |
28.1 |
24 |
16 |
ZG1/2 |
￠14 |
| LSQ-550-06SM |
81.8 |
28.1 |
27 |
18 |
ZG3/4 |
￠18 |
| PART NO. |
LS |
D |
HEX1 |
A |
T |
d |
| LSQ-550-04PM |
59.5 |
35 |
22 |
16 |
ZG1/2 |
￠11 |
| LSQ-550-06PM |
63 |
35 |
27 |
18 |
ZG3/4 |
￠11 |
| PART NO. |
LS |
￠D |
HEX1 |
A |
T |
d |
| LSQ-550-04SF |
78.3 |
28.1 |
27 |
16 |
G1/2 |
￠17.9 |
| LSQ-550-06SF |
79.8 |
28.1 |
32 |
18 |
G3/4 |
￠17.9 |
| PART NO. |
LS |
￠D |
HEX1 |
A |
T |
d |
| LSQ-550-04PF |
55 |
35 |
27 |
16 |
G1/2 |
￠11 |
| LSQ-550-06PF |
57 |
35 |
32 |
18 |
G3/4 |
￠11 |
| PART NO. |
LS |
￠D |
HEX1 |
A |
￠T |
d |
| LSQ-550-04SH |
96.3 |
28.1 |
24 |
30 |
15 |
￠10 |
| LSQ-550-06SH |
96.3 |
28.1 |
24 |
30 |
20.5 |
￠15 |
| PART NO. |
LP |
C |
￠CP |
A |
￠T |
d |
| LSQ-550-04PH |
68 |
35 |
23 |
30 |
15 |
￠11 |
| LSQ-550-06PH |
68 |
35 |
23 |
30 |
20.6 |
￠11
|
